GSS516 with Red 6K Epic Dragon gyrostabilised platform

GSS516 with Red 6K Epic Dragon

The GSS516 is the latest revolution on the Aerial Film market.
It is the most compact and lightweight system, and capable of producing the most steady shots at the highest possible resolution
Because of its compact design, just one person can easily install it in less than 2 hours
It is packed in several small boxes, allowing us to transport it as luggage on any commercial flight.
There is no export restriction, it can be operated in any country in the world.
It can be mounted on the most common helicopters and on cars and boats in standard or inverted use

Download full specs PDF file

Camera Red 6K Epic Dragon

6K = 9 times more pixels than HD
16,5 stops dynamic range
Up to 300fps in 2K

Lens

Angenieux Optimo DP 25-250

GIMBAL PERFORMANCE

5-axis advanced fiber optic gyro-stabilization
Stabilized or steerable horizon with in-flight automatic calibration
Look-down capability
Platform designed for both standard and inverted use
Azimuth: 360° continuous
Elevation: +30° to -205° from horizontal
Roll: +/- 120° from horizontal (steerable/stabilized)
Gimbal Slew Rate: 0-200°/second
Maximum Operational Airspeed: 200 knots
Metadata outputs (lens, camera, & GPS functions)

HD Cinéflex V14 gyrostabilised systems

HD Cineflex

Stabilisation:
- 5 Axis Gyro-Stabilised
- Full Digital Servo and Control System
- High Performance / Small / Lightweight
Field of Regard: Automatic and Steerable
- Pan (Azimuth) 360° continuous
- Tilt (Elevation) Upwards +25° to Downwards - 140°
- Roll +/- 45°
Maximum Slew Rate 50° / sec
Maximum Slew Acceleration 200° / sec
Position Resolution .001°
Electronics High Speed 32bit DSP
Communication Links Bidirectional RS422 and RS232

Download full specs PDF file

Camera Sony HDC-1500

HDTV: 1920x1080(16:9):50i, 60i, 59.94i, 30P, 29.97P, 25P, 24P, 23.98P

Dual Lens options

22x zoom and 42x zoom (technical lens specifications in PDF data sheet)

VTR

SONY SRW-1 HDCam SR (4:4:4)
SONY HDW-S28 HDCam (4:2:2:)
SONY PDW –HD1500 XDCam (Mpeg 422)
SoundDevice Pix 240 (4:2:2 and 4:4:4)
For all VTR’s available – read Visions PDF data sheet

The Cinéflex Elite gyro-stabilized camera system is a compact, light-weight Super 35 format digital production camera system.

Cinéflex Elite

Stabilisation:
- 5 Axis Gyro-Stabilised
- Full Digital Servo and Control System
- High Performance / Small / Lightweight
System specifications:
- System Type 5-axis gyro-stabilized
- Azimuth Coverage 360° Continuous
- Elevation Coverage 25° to -195°
- Roll Coverage +/- 45°
- Slew Rate 0 - 55°/sec

Download full specs PDF file

ARRI ALEXA-M Super 35 format film-style digital camera

HDTV: 1920x1080(16:9):50i, 60i, 59.94i, 30P, 29.97P, 25P, 24P, 23.98P

Dual Lens options

Canon CN-E14.5-60mm
Canon CN-E30-300mm

VTR

For all VTR’s available – read Visions PDF data sheet

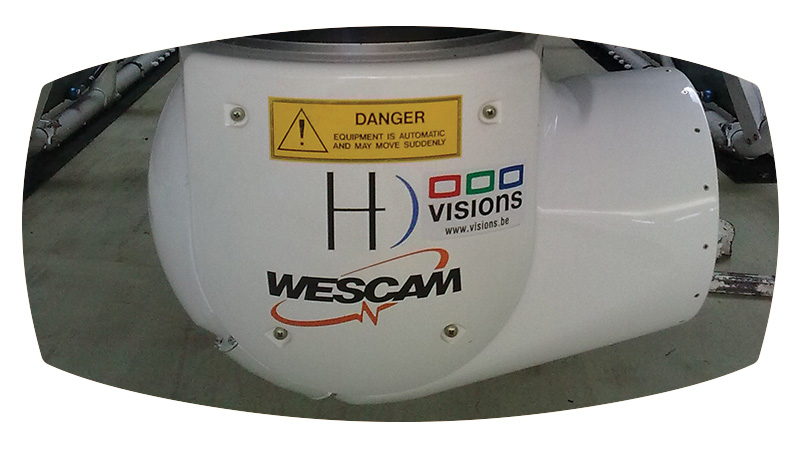

Wescam Airborne Imaging System 16” Single Sensor High Definition Daylight Broadcast 750 mm. The most performant High Definition gyro-stabilised camera platform.

HD Wescam

Cone-mount & Quick-mount systems
Three (3) Axis Inner Gyro Stabilised (pitch/roll/yaw)
Two (2) Axis Outer (azimuth/elevation)
Roll Range> 70° (+35° tot -35,-°)
Pan Range : Continious 360°
Tilt Range: +15° tot -120°

Camera Sony HDC 950

Format 16:9
HD & SD outputs
RM-B750 Camera Remote Control

Lens Fujinon HDTV HA 36 x 10.5 ERD Zoom lens

2 x Remote controlled Range Extender
Focal length (1x): 10,5 mm to 378 mm
Focal length (2x): 21 mm to 756 mm
Field of view:
- wide (1x) 49° 05’x 28° 47’@10,5 mm – 378 mm 1° 27’ x 0° 49’
- narrow (2x) 25° 43°x 14° 38’@ 21 mm -756 mm 0° 44’ x 0° 25’

VTR

SONY SRW-1 HDCam SR (4:4:4)
SONY HDW-S28 HDCam (4:2:2:)
SONY PDW –HD1500 XDCam (Mpeg 422)

Wescam Airborne Imaging System 16” Single Sensor Daylight Broadcast 320 mm. The most compact digital broadcast gyro-stabilised camera platform.

Digital Wescam

Cone-mount & Quick-mount systems
Three (3) Axis Inner Gyro Stabilised (pitch/roll/yaw)
Two (2) Axis Outer (azimuth/elevation)
Roll Range> 85° (+42,5° tot -42,-°)
Pan Range : Continious 360°
Tilt Range: +30° tot -120°
GPS Information Overlay (GPS data on screen)

Camera Sony BVP-570 P

Switchable 4:3 / 16:9
Broadcast full digital 12 bit AD Conversion camera
Camera Adaptor CA-530 with SDI output
RM-B150 Camera Remote Control

Lens Fujinon 20x8 Zoom lens

2 x Remote controlled Range Extender
Focal length (1x): 8.0 mm to 160 mm
Focal length (2x): 16.0 mm to 320 mm
Field of view :
- Pan (Azimuth) 360° continuous
- Tilt (Elevation) Upwards +25° to Downwards - 140°
- Roll +/- 45°

VTR

SONY BVW-250 Digital Betacam Pal with SDI input
Other formats upon request.

Wescam Airborne Imaging System 16” Single Sensor Daylight Broadcast 750 mm. The most performant digital broadcast gyro-stabilised camera platform.

Digital Wescam

Cone-mount system
Three (3) Axis Inner Gyro Stabilised (pitch/roll/yaw)
Two (2) Axis Outer (azimuth/elevation)
Roll Range> 70° (+35° tot -35,-°)
Pan Range : Continious 360°
Tilt Range: +15° tot -120°

Camera Sony BVP-570 P

Switchable 4:3 / 16:9
Broadcast full digital 12 bit AD Conversion camera
Camera Adaptor CA-530 with SDI output
RM-B150 Camera Remote Control

Lens Fujinon 36 X 10,5 Zoom lens

2 x Remote controlled Range Extender
Focal length (2x): 10,5 mm to 756 mm
Field of view :
- wide 45,5° (H) x 34,9° (V) @10,5 mm
- narrow 0,67° (H) x 0,50° (V) @ 756 mm

VTR

SONY BVW-250 Digital Betacam Pal with SDI input
Other formats upon request.

We make no compromise in quality!

We operate a leading edge GSS516 with Red 6K Epic Dragon, and HD Cinéflex + Wescam gyrostabilised camera systems.

GSS516 with Red 6K Epic Dragon gyrostabilised platform

HD Cinéflex V14 gyrostabilised systems

The Cinéflex Elite gyro-stabilized camera system is a compact, light-weight Super 35 format digital production camera system.

Wescam Airborne Imaging System 16” Single Sensor High Definition Daylight Broadcast 750 mm. The most performant High Definition gyro-stabilised camera platform.

Wescam Airborne Imaging System 16” Single Sensor Daylight Broadcast 320 mm. The most compact digital broadcast gyro-stabilised camera platform.

Wescam Airborne Imaging System 16” Single Sensor Daylight Broadcast 750 mm. The most performant digital broadcast gyro-stabilised camera platform.

Full equipped helicopters.

Major television channels and organisations represent the main part of our customer list.
